Experimental nuclear chart

4.1. Experimental nuclear chart#

In this tutorial, you will learn how to extract data from the experimental nuclear chart.

Import the libraries that will be employed in this tutorial.

# Import numpy
import numpy as np
import matplotlib.pyplot as plt
# Import nucleardatapy package
import nucleardatapy as nuda
%matplotlib inline
# Enable inline plotting for Jupyter Notebook
%matplotlib inline

You can simply print out the properties of the nuda’s function that we will use:

# Explore the nucleardatapy module to find the correct attribute
print(dir(nuda.nuc.setupBEExp))

['D3n', 'D3p', 'S2n', 'S2p', '__class__', '__delattr__', '__dict__', '__dir__', '__doc__', '__eq__', '__format__', '__ge__', '__getattribute__', '__getstate__', '__gt__', '__hash__', '__init__', '__init_subclass__', '__le__', '__lt__', '__module__', '__ne__', '__new__', '__reduce__', '__reduce_ex__', '__repr__', '__setattr__', '__sizeof__', '__str__', '__subclasshook__', '__weakref__', 'isotones', 'isotopes', 'print_outputs', 'select', 'select_year']

Get the full list of tables:

print('tables:',nuda.nuc.be_exp_tables()[0])

tables: ['AME']

Get the versions associated to this table:

print('versions:',nuda.nuc.be_exp_versions(table = 'AME')[0])

versions: ['2020', '2016', '2012']

Extract data from a given table and version:

mas = nuda.nuc.setupBEExp( table = 'AME', version = '2020' )
print('number of nuclei:',mas.nbNuc)

Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]
number of nuclei: 5827

print outputs:

# mas.print_outputs( )

Discovery year:

print('Discovery year:',mas.nucYear)

Discovery year: [1932 1920 1932 ... 2030 2030 2030]

Select year:

selectYear = mas.select_year( year_min=1897, year_max=1940, state = 'gs' )
print('A:',selectYear.sel_A)
print('Z:',selectYear.sel_Z)
print('N:',selectYear.sel_N)

number of nuclei(Tot): 475
number of nuclei(Sta): 462
number of nuclei(Sel): 462
A: [np.int64(1), np.int64(1), np.int64(2), np.int64(3), np.int64(3), np.int64(4), np.int64(5), np.int64(6), np.int64(6), np.int64(7), np.int64(7), np.int64(8), np.int64(8), np.int64(9), np.int64(10), np.int64(10), np.int64(11), np.int64(11), np.int64(12), np.int64(12), np.int64(13), np.int64(13), np.int64(14), np.int64(14), np.int64(15), np.int64(15), np.int64(16), np.int64(16), np.int64(17), np.int64(17), np.int64(18), np.int64(18), np.int64(19), np.int64(19), np.int64(19), np.int64(20), np.int64(20), np.int64(21), np.int64(22), np.int64(22), np.int64(23), np.int64(23), np.int64(23), np.int64(24), np.int64(24), np.int64(25), np.int64(26), np.int64(26), np.int64(27), np.int64(27), np.int64(27), np.int64(28), np.int64(28), np.int64(29), np.int64(29), np.int64(30), np.int64(30), np.int64(31), np.int64(31), np.int64(32), np.int64(32), np.int64(33), np.int64(34), np.int64(34), np.int64(35), np.int64(35), np.int64(36), np.int64(36), np.int64(37), np.int64(38), np.int64(38), np.int64(39), np.int64(40), np.int64(40), np.int64(40), np.int64(41), np.int64(41), np.int64(41), np.int64(42), np.int64(42), np.int64(43), np.int64(43), np.int64(44), np.int64(44), np.int64(45), np.int64(46), np.int64(46), np.int64(46), np.int64(47), np.int64(48), np.int64(48), np.int64(48), np.int64(48), np.int64(49), np.int64(50), np.int64(50), np.int64(51), np.int64(51), np.int64(52), np.int64(52), np.int64(52), np.int64(53), np.int64(53), np.int64(54), np.int64(54), np.int64(54), np.int64(55), np.int64(55), np.int64(55), np.int64(56), np.int64(56), np.int64(57), np.int64(57), np.int64(58), np.int64(58), np.int64(59), np.int64(59), np.int64(60), np.int64(61), np.int64(61), np.int64(62), np.int64(62), np.int64(63), np.int64(63), np.int64(64), np.int64(64), np.int64(64), np.int64(65), np.int64(65), np.int64(65), np.int64(66), np.int64(66), np.int64(66), np.int64(67), np.int64(67), np.int64(68), np.int64(68), np.int64(69), np.int64(69), np.int64(69), np.int64(70), np.int64(70), np.int64(70), np.int64(71), np.int64(71), np.int64(72), np.int64(72), np.int64(72), np.int64(73), np.int64(74), np.int64(74), np.int64(74), np.int64(75), np.int64(75), np.int64(76), np.int64(76), np.int64(76), np.int64(77), np.int64(77), np.int64(78), np.int64(78), np.int64(78), np.int64(78), np.int64(79), np.int64(80), np.int64(80), np.int64(80), np.int64(81), np.int64(82), np.int64(82), np.int64(82), np.int64(83), np.int64(83), np.int64(83), np.int64(84), np.int64(84), np.int64(85), np.int64(86), np.int64(86), np.int64(87), np.int64(87), np.int64(88), np.int64(88), np.int64(88), np.int64(89), np.int64(89), np.int64(90), np.int64(90), np.int64(91), np.int64(92), np.int64(92), np.int64(92), np.int64(93), np.int64(94), np.int64(94), np.int64(94), np.int64(95), np.int64(96), np.int64(96), np.int64(96), np.int64(97), np.int64(98), np.int64(99), np.int64(99), np.int64(100), np.int64(100), np.int64(101), np.int64(102), np.int64(102), np.int64(103), np.int64(104), np.int64(104), np.int64(104), np.int64(105), np.int64(105), np.int64(106), np.int64(106), np.int64(106), np.int64(107), np.int64(108), np.int64(108), np.int64(108), np.int64(109), np.int64(109), np.int64(110), np.int64(110), np.int64(110), np.int64(110), np.int64(111), np.int64(111), np.int64(111), np.int64(112), np.int64(112), np.int64(112), np.int64(113), np.int64(113), np.int64(113), np.int64(114), np.int64(114), np.int64(114), np.int64(115), np.int64(115), np.int64(115), np.int64(116), np.int64(116), np.int64(116), np.int64(117), np.int64(117), np.int64(117), np.int64(118), np.int64(119), np.int64(120), np.int64(120), np.int64(120), np.int64(121), np.int64(121), np.int64(122), np.int64(122), np.int64(122), np.int64(123), np.int64(123), np.int64(124), np.int64(124), np.int64(124), np.int64(124), np.int64(124), np.int64(125), np.int64(125), np.int64(126), np.int64(126), np.int64(126), np.int64(127), np.int64(127), np.int64(127), np.int64(128), np.int64(128), np.int64(128), np.int64(129), np.int64(129), np.int64(129), np.int64(130), np.int64(130), np.int64(130), np.int64(130), np.int64(131), np.int64(131), np.int64(131), np.int64(132), np.int64(132), np.int64(133), np.int64(134), np.int64(134), np.int64(135), np.int64(136), np.int64(136), np.int64(136), np.int64(137), np.int64(138), np.int64(138), np.int64(139), np.int64(139), np.int64(139), np.int64(140), np.int64(140), np.int64(140), np.int64(140), np.int64(141), np.int64(142), np.int64(142), np.int64(142), np.int64(143), np.int64(144), np.int64(144), np.int64(145), np.int64(146), np.int64(147), np.int64(148), np.int64(148), np.int64(149), np.int64(149), np.int64(150), np.int64(150), np.int64(151), np.int64(151), np.int64(152), np.int64(152), np.int64(152), np.int64(153), np.int64(153), np.int64(154), np.int64(154), np.int64(155), np.int64(156), np.int64(157), np.int64(158), np.int64(158), np.int64(159), np.int64(160), np.int64(160), np.int64(161), np.int64(162), np.int64(162), np.int64(163), np.int64(164), np.int64(164), np.int64(164), np.int64(165), np.int64(165), np.int64(166), np.int64(166), np.int64(167), np.int64(168), np.int64(168), np.int64(169), np.int64(170), np.int64(170), np.int64(170), np.int64(171), np.int64(171), np.int64(172), np.int64(173), np.int64(174), np.int64(174), np.int64(175), np.int64(176), np.int64(176), np.int64(176), np.int64(177), np.int64(178), np.int64(179), np.int64(180), np.int64(180), np.int64(180), np.int64(181), np.int64(181), np.int64(182), np.int64(182), np.int64(183), np.int64(184), np.int64(184), np.int64(185), np.int64(186), np.int64(186), np.int64(186), np.int64(187), np.int64(187), np.int64(188), np.int64(188), np.int64(189), np.int64(190), np.int64(191), np.int64(192), np.int64(192), np.int64(192), np.int64(193), np.int64(194), np.int64(194), np.int64(195), np.int64(196), np.int64(196), np.int64(196), np.int64(197), np.int64(197), np.int64(198), np.int64(198), np.int64(198), np.int64(199), np.int64(199), np.int64(199), np.int64(200), np.int64(201), np.int64(202), np.int64(203), np.int64(204), np.int64(204), np.int64(205), np.int64(206), np.int64(206), np.int64(207), np.int64(207), np.int64(208), np.int64(208), np.int64(209), np.int64(210), np.int64(210), np.int64(210), np.int64(210), np.int64(211), np.int64(211), np.int64(211), np.int64(212), np.int64(212), np.int64(212), np.int64(214), np.int64(214), np.int64(214), np.int64(215), np.int64(216), np.int64(218), np.int64(219), np.int64(220), np.int64(222), np.int64(223), np.int64(223), np.int64(224), np.int64(226), np.int64(227), np.int64(227), np.int64(228), np.int64(228), np.int64(228), np.int64(230), np.int64(231), np.int64(231), np.int64(232), np.int64(233), np.int64(233), np.int64(234), np.int64(234), np.int64(234), np.int64(235), np.int64(239)]
Z: [np.int64(0), np.int64(1), np.int64(1), np.int64(1), np.int64(2), np.int64(2), np.int64(2), np.int64(2), np.int64(3), np.int64(3), np.int64(4), np.int64(3), np.int64(4), np.int64(4), np.int64(4), np.int64(5), np.int64(5), np.int64(6), np.int64(5), np.int64(6), np.int64(6), np.int64(7), np.int64(6), np.int64(7), np.int64(7), np.int64(8), np.int64(7), np.int64(8), np.int64(8), np.int64(9), np.int64(8), np.int64(9), np.int64(8), np.int64(9), np.int64(10), np.int64(9), np.int64(10), np.int64(10), np.int64(10), np.int64(11), np.int64(10), np.int64(11), np.int64(12), np.int64(11), np.int64(12), np.int64(12), np.int64(12), np.int64(13), np.int64(12), np.int64(13), np.int64(14), np.int64(13), np.int64(14), np.int64(13), np.int64(14), np.int64(14), np.int64(15), np.int64(14), np.int64(15), np.int64(15), np.int64(16), np.int64(16), np.int64(16), np.int64(17), np.int64(16), np.int64(17), np.int64(16), np.int64(18), np.int64(17), np.int64(18), np.int64(19), np.int64(19), np.int64(18), np.int64(19), np.int64(20), np.int64(18), np.int64(19), np.int64(20), np.int64(19), np.int64(20), np.int64(20), np.int64(21), np.int64(20), np.int64(21), np.int64(21), np.int64(20), np.int64(21), np.int64(22), np.int64(22), np.int64(20), np.int64(21), np.int64(22), np.int64(23), np.int64(22), np.int64(22), np.int64(24), np.int64(23), np.int64(25), np.int64(23), np.int64(24), np.int64(25), np.int64(24), np.int64(26), np.int64(24), np.int64(25), np.int64(26), np.int64(25), np.int64(26), np.int64(27), np.int64(25), np.int64(26), np.int64(26), np.int64(28), np.int64(26), np.int64(28), np.int64(26), np.int64(27), np.int64(28), np.int64(28), np.int64(29), np.int64(28), np.int64(29), np.int64(29), np.int64(30), np.int64(28), np.int64(29), np.int64(30), np.int64(29), np.int64(30), np.int64(31), np.int64(29), np.int64(30), np.int64(31), np.int64(30), np.int64(31), np.int64(30), np.int64(31), np.int64(30), np.int64(31), np.int64(32), np.int64(30), np.int64(31), np.int64(32), np.int64(31), np.int64(33), np.int64(31), np.int64(32), np.int64(33), np.int64(32), np.int64(32), np.int64(33), np.int64(34), np.int64(32), np.int64(33), np.int64(32), np.int64(33), np.int64(34), np.int64(32), np.int64(34), np.int64(33), np.int64(34), np.int64(35), np.int64(36), np.int64(35), np.int64(34), np.int64(35), np.int64(36), np.int64(35), np.int64(34), np.int64(35), np.int64(36), np.int64(34), np.int64(35), np.int64(36), np.int64(36), np.int64(38), np.int64(37), np.int64(36), np.int64(38), np.int64(37), np.int64(38), np.int64(36), np.int64(37), np.int64(38), np.int64(38), np.int64(39), np.int64(39), np.int64(40), np.int64(40), np.int64(40), np.int64(41), np.int64(42), np.int64(41), np.int64(40), np.int64(41), np.int64(42), np.int64(42), np.int64(40), np.int64(42), np.int64(44), np.int64(42), np.int64(42), np.int64(43), np.int64(44), np.int64(42), np.int64(44), np.int64(44), np.int64(44), np.int64(46), np.int64(45), np.int64(44), np.int64(45), np.int64(46), np.int64(46), np.int64(47), np.int64(46), np.int64(47), np.int64(48), np.int64(47), np.int64(46), np.int64(47), np.int64(48), np.int64(46), np.int64(47), np.int64(46), np.int64(47), np.int64(48), np.int64(49), np.int64(46), np.int64(47), np.int64(48), np.int64(47), np.int64(48), np.int64(50), np.int64(48), np.int64(49), np.int64(50), np.int64(48), np.int64(49), np.int64(50), np.int64(48), np.int64(49), np.int64(50), np.int64(48), np.int64(49), np.int64(50), np.int64(48), np.int64(49), np.int64(50), np.int64(50), np.int64(50), np.int64(50), np.int64(51), np.int64(52), np.int64(51), np.int64(52), np.int64(50), np.int64(51), np.int64(52), np.int64(51), np.int64(52), np.int64(50), np.int64(51), np.int64(52), np.int64(53), np.int64(54), np.int64(50), np.int64(52), np.int64(52), np.int64(53), np.int64(54), np.int64(51), np.int64(52), np.int64(53), np.int64(52), np.int64(53), np.int64(54), np.int64(51), np.int64(52), np.int64(54), np.int64(52), np.int64(53), np.int64(54), np.int64(56), np.int64(52), np.int64(53), np.int64(54), np.int64(54), np.int64(56), np.int64(55), np.int64(54), np.int64(56), np.int64(56), np.int64(54), np.int64(56), np.int64(58), np.int64(56), np.int64(56), np.int64(58), np.int64(55), np.int64(56), np.int64(57), np.int64(56), np.int64(57), np.int64(58), np.int64(59), np.int64(59), np.int64(58), np.int64(59), np.int64(60), np.int64(60), np.int64(60), np.int64(62), np.int64(60), np.int64(60), np.int64(62), np.int64(60), np.int64(62), np.int64(60), np.int64(62), np.int64(60), np.int64(62), np.int64(60), np.int64(63), np.int64(62), np.int64(63), np.int64(64), np.int64(62), np.int64(63), np.int64(62), np.int64(64), np.int64(64), np.int64(64), np.int64(64), np.int64(64), np.int64(66), np.int64(65), np.int64(64), np.int64(66), np.int64(66), np.int64(66), np.int64(68), np.int64(66), np.int64(66), np.int64(67), np.int64(68), np.int64(66), np.int64(67), np.int64(67), np.int64(68), np.int64(68), np.int64(68), np.int64(70), np.int64(69), np.int64(68), np.int64(69), np.int64(70), np.int64(68), np.int64(70), np.int64(70), np.int64(70), np.int64(70), np.int64(72), np.int64(71), np.int64(70), np.int64(71), np.int64(72), np.int64(72), np.int64(72), np.int64(72), np.int64(72), np.int64(73), np.int64(74), np.int64(72), np.int64(73), np.int64(73), np.int64(74), np.int64(74), np.int64(74), np.int64(76), np.int64(75), np.int64(74), np.int64(75), np.int64(76), np.int64(75), np.int64(76), np.int64(75), np.int64(76), np.int64(76), np.int64(76), np.int64(77), np.int64(76), np.int64(77), np.int64(78), np.int64(77), np.int64(77), np.int64(78), np.int64(78), np.int64(78), np.int64(79), np.int64(80), np.int64(78), np.int64(79), np.int64(78), np.int64(79), np.int64(80), np.int64(78), np.int64(79), np.int64(80), np.int64(80), np.int64(80), np.int64(80), np.int64(81), np.int64(80), np.int64(82), np.int64(81), np.int64(81), np.int64(82), np.int64(81), np.int64(82), np.int64(81), np.int64(82), np.int64(83), np.int64(81), np.int64(82), np.int64(83), np.int64(84), np.int64(82), np.int64(83), np.int64(84), np.int64(82), np.int64(83), np.int64(84), np.int64(82), np.int64(83), np.int64(84), np.int64(84), np.int64(84), np.int64(84), np.int64(86), np.int64(86), np.int64(86), np.int64(87), np.int64(88), np.int64(88), np.int64(88), np.int64(89), np.int64(90), np.int64(88), np.int64(89), np.int64(90), np.int64(90), np.int64(90), np.int64(91), np.int64(90), np.int64(90), np.int64(91), np.int64(90), np.int64(91), np.int64(92), np.int64(92), np.int64(92)]
N: [np.int64(1), np.int64(0), np.int64(1), np.int64(2), np.int64(1), np.int64(2), np.int64(3), np.int64(4), np.int64(3), np.int64(4), np.int64(3), np.int64(5), np.int64(4), np.int64(5), np.int64(6), np.int64(5), np.int64(6), np.int64(5), np.int64(7), np.int64(6), np.int64(7), np.int64(6), np.int64(8), np.int64(7), np.int64(8), np.int64(7), np.int64(9), np.int64(8), np.int64(9), np.int64(8), np.int64(10), np.int64(9), np.int64(11), np.int64(10), np.int64(9), np.int64(11), np.int64(10), np.int64(11), np.int64(12), np.int64(11), np.int64(13), np.int64(12), np.int64(11), np.int64(13), np.int64(12), np.int64(13), np.int64(14), np.int64(13), np.int64(15), np.int64(14), np.int64(13), np.int64(15), np.int64(14), np.int64(16), np.int64(15), np.int64(16), np.int64(15), np.int64(17), np.int64(16), np.int64(17), np.int64(16), np.int64(17), np.int64(18), np.int64(17), np.int64(19), np.int64(18), np.int64(20), np.int64(18), np.int64(20), np.int64(20), np.int64(19), np.int64(20), np.int64(22), np.int64(21), np.int64(20), np.int64(23), np.int64(22), np.int64(21), np.int64(23), np.int64(22), np.int64(23), np.int64(22), np.int64(24), np.int64(23), np.int64(24), np.int64(26), np.int64(25), np.int64(24), np.int64(25), np.int64(28), np.int64(27), np.int64(26), np.int64(25), np.int64(27), np.int64(28), np.int64(26), np.int64(28), np.int64(26), np.int64(29), np.int64(28), np.int64(27), np.int64(29), np.int64(27), np.int64(30), np.int64(29), np.int64(28), np.int64(30), np.int64(29), np.int64(28), np.int64(31), np.int64(30), np.int64(31), np.int64(29), np.int64(32), np.int64(30), np.int64(33), np.int64(32), np.int64(32), np.int64(33), np.int64(32), np.int64(34), np.int64(33), np.int64(34), np.int64(33), np.int64(36), np.int64(35), np.int64(34), np.int64(36), np.int64(35), np.int64(34), np.int64(37), np.int64(36), np.int64(35), np.int64(37), np.int64(36), np.int64(38), np.int64(37), np.int64(39), np.int64(38), np.int64(37), np.int64(40), np.int64(39), np.int64(38), np.int64(40), np.int64(38), np.int64(41), np.int64(40), np.int64(39), np.int64(41), np.int64(42), np.int64(41), np.int64(40), np.int64(43), np.int64(42), np.int64(44), np.int64(43), np.int64(42), np.int64(45), np.int64(43), np.int64(45), np.int64(44), np.int64(43), np.int64(42), np.int64(44), np.int64(46), np.int64(45), np.int64(44), np.int64(46), np.int64(48), np.int64(47), np.int64(46), np.int64(49), np.int64(48), np.int64(47), np.int64(48), np.int64(46), np.int64(48), np.int64(50), np.int64(48), np.int64(50), np.int64(49), np.int64(52), np.int64(51), np.int64(50), np.int64(51), np.int64(50), np.int64(51), np.int64(50), np.int64(51), np.int64(52), np.int64(51), np.int64(50), np.int64(52), np.int64(54), np.int64(53), np.int64(52), np.int64(53), np.int64(56), np.int64(54), np.int64(52), np.int64(55), np.int64(56), np.int64(56), np.int64(55), np.int64(58), np.int64(56), np.int64(57), np.int64(58), np.int64(56), np.int64(58), np.int64(60), np.int64(59), np.int64(58), np.int64(59), np.int64(58), np.int64(60), np.int64(59), np.int64(58), np.int64(60), np.int64(62), np.int64(61), np.int64(60), np.int64(63), np.int64(62), np.int64(64), np.int64(63), np.int64(62), np.int64(61), np.int64(65), np.int64(64), np.int64(63), np.int64(65), np.int64(64), np.int64(62), np.int64(65), np.int64(64), np.int64(63), np.int64(66), np.int64(65), np.int64(64), np.int64(67), np.int64(66), np.int64(65), np.int64(68), np.int64(67), np.int64(66), np.int64(69), np.int64(68), np.int64(67), np.int64(68), np.int64(69), np.int64(70), np.int64(69), np.int64(68), np.int64(70), np.int64(69), np.int64(72), np.int64(71), np.int64(70), np.int64(72), np.int64(71), np.int64(74), np.int64(73), np.int64(72), np.int64(71), np.int64(70), np.int64(75), np.int64(73), np.int64(74), np.int64(73), np.int64(72), np.int64(76), np.int64(75), np.int64(74), np.int64(76), np.int64(75), np.int64(74), np.int64(78), np.int64(77), np.int64(75), np.int64(78), np.int64(77), np.int64(76), np.int64(74), np.int64(79), np.int64(78), np.int64(77), np.int64(78), np.int64(76), np.int64(78), np.int64(80), np.int64(78), np.int64(79), np.int64(82), np.int64(80), np.int64(78), np.int64(81), np.int64(82), np.int64(80), np.int64(84), np.int64(83), np.int64(82), np.int64(84), np.int64(83), np.int64(82), np.int64(81), np.int64(82), np.int64(84), np.int64(83), np.int64(82), np.int64(83), np.int64(84), np.int64(82), np.int64(85), np.int64(86), np.int64(85), np.int64(88), np.int64(86), np.int64(89), np.int64(87), np.int64(90), np.int64(88), np.int64(91), np.int64(88), np.int64(90), np.int64(89), np.int64(88), np.int64(91), np.int64(90), np.int64(92), np.int64(90), np.int64(91), np.int64(92), np.int64(93), np.int64(94), np.int64(92), np.int64(94), np.int64(96), np.int64(94), np.int64(95), np.int64(96), np.int64(94), np.int64(97), np.int64(98), np.int64(97), np.int64(96), np.int64(99), np.int64(98), np.int64(99), np.int64(98), np.int64(99), np.int64(100), np.int64(98), np.int64(100), np.int64(102), np.int64(101), np.int64(100), np.int64(103), np.int64(101), np.int64(102), np.int64(103), np.int64(104), np.int64(102), np.int64(104), np.int64(106), np.int64(105), np.int64(104), np.int64(105), np.int64(106), np.int64(107), np.int64(108), np.int64(107), np.int64(106), np.int64(109), np.int64(108), np.int64(109), np.int64(108), np.int64(109), np.int64(110), np.int64(108), np.int64(110), np.int64(112), np.int64(111), np.int64(110), np.int64(112), np.int64(111), np.int64(113), np.int64(112), np.int64(113), np.int64(114), np.int64(114), np.int64(116), np.int64(115), np.int64(114), np.int64(116), np.int64(117), np.int64(116), np.int64(117), np.int64(118), np.int64(117), np.int64(116), np.int64(119), np.int64(118), np.int64(120), np.int64(119), np.int64(118), np.int64(121), np.int64(120), np.int64(119), np.int64(120), np.int64(121), np.int64(122), np.int64(122), np.int64(124), np.int64(122), np.int64(124), np.int64(125), np.int64(124), np.int64(126), np.int64(125), np.int64(127), np.int64(126), np.int64(126), np.int64(129), np.int64(128), np.int64(127), np.int64(126), np.int64(129), np.int64(128), np.int64(127), np.int64(130), np.int64(129), np.int64(128), np.int64(132), np.int64(131), np.int64(130), np.int64(131), np.int64(132), np.int64(134), np.int64(133), np.int64(134), np.int64(136), np.int64(136), np.int64(135), np.int64(136), np.int64(138), np.int64(138), np.int64(137), np.int64(140), np.int64(139), np.int64(138), np.int64(140), np.int64(141), np.int64(140), np.int64(142), np.int64(143), np.int64(142), np.int64(144), np.int64(143), np.int64(142), np.int64(143), np.int64(147)]

Extract isotopes:

Select ground-states:

sel = mas.select( state= 'gs', interp = 'n', nucleus = 'unstable' )

number of nuclei(Tot): 5573
number of nuclei(Sta): 2297
number of nuclei(Sel): 2297

isotopes = sel.isotopes( Zref=50)
print('Z:',isotopes.itp_nucZ)
print('Nmin:',isotopes.itp_nucNmin)
print('Nmax:',isotopes.itp_nucNmax)

Z: 50
Nmin: 50
Nmax: 85

Theoretical mass tables (for models predicting driplines)

theo_tables, theo_tables_lower = nuda.nuc.be_theo_tables()
print('theo_tables:',theo_tables)

theo_tables: ['1988-GK', '1988-MJ', '1995-DZ', '1995-ETFSI', '1995-FRDM', '2005-KTUY', '2007-HFB14', '2010-WS*', '2010-HFB21', '2011-WS3', '2013-HFB22', '2013-HFB23', '2013-HFB24', '2013-HFB25', '2013-HFB26', '2021-BSkG1', '2022-BSkG2', '2023-BSkG3', '2025-BSkG4']

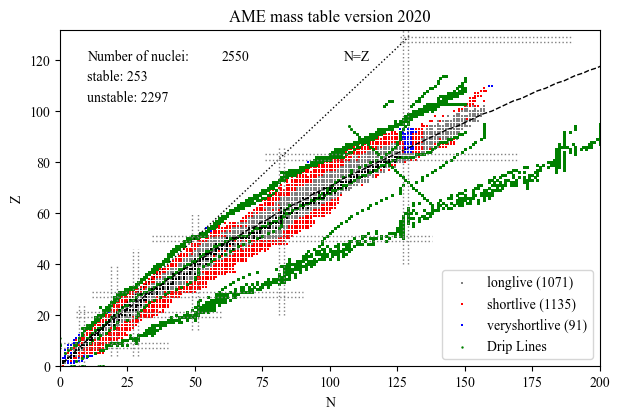

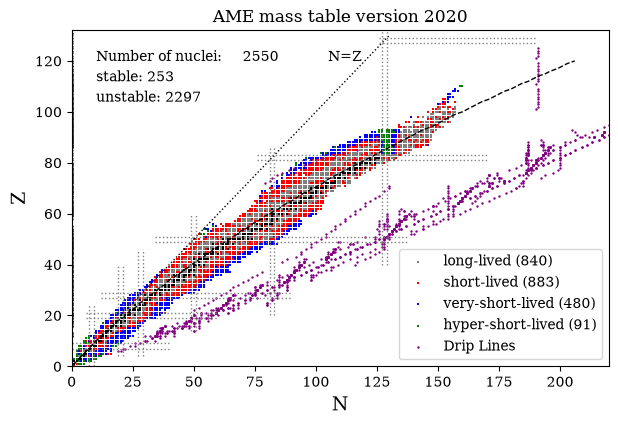

Plot nuclear chart:

nuda.fig.nuc_setupBEExp_chart_lt_fig( None,  table = 'AME', version = '2020', theo_tables = theo_tables )

Plot name: None
Table: AME
--------------------
longlived nuclei:
Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]
number of nuclei(Tot): 1115
number of nuclei(Sta): 840
number of nuclei(Sel): 840
--------------------
shortlived nuclei:
Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]
number of nuclei(Tot): 1808
number of nuclei(Sta): 883
number of nuclei(Sel): 883
--------------------
veryshortlived nuclei:
Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]

number of nuclei(Tot): 1067
number of nuclei(Sta): 480
number of nuclei(Sel): 480
--------------------
hypershortlived nuclei:

Oldest discovery is from:

 1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]

number of nuclei(Tot): 1495
number of nuclei(Sta): 91
number of nuclei(Sel): 91
--------------------
unstable nuclei:
Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]

number of nuclei(Tot): 5573
number of nuclei(Sta): 2297
number of nuclei(Sel): 2297
--------------------
dripline nuclei:
theo_tables: ['1988-GK', '1988-MJ', '1995-DZ', '1995-ETFSI', '1995-FRDM', '2005-KTUY', '2007-HFB14', '2010-WS*', '2010-HFB21', '2011-WS3', '2013-HFB22', '2013-HFB23', '2013-HFB24', '2013-HFB25', '2013-HFB26', '2021-BSkG1', '2022-BSkG2', '2023-BSkG3', '2025-BSkG4']
theo_table: 1988-GK

   Zmin, Zmax: 2 103

theo_table: 1988-MJ
   Zmin, Zmax: 8 103

theo_table: 1995-DZ
   Zmin, Zmax: 8 123

theo_table: 1995-ETFSI
   Zmin, Zmax: 10 115

theo_table: 1995-FRDM
   Zmin, Zmax: 8 136

theo_table: 2005-KTUY
   Zmin, Zmax: 2 130

theo_table: 2007-HFB14
   Zmin, Zmax: 8 110

theo_table: 2010-WS*
   Zmin, Zmax: 6 127

theo_table: 2010-HFB21
   Zmin, Zmax: 8 110

theo_table: 2011-WS3
   Zmin, Zmax: 6 127

theo_table: 2013-HFB22
   Zmin, Zmax: 8 110

theo_table: 2013-HFB23
   Zmin, Zmax: 8 110

theo_table: 2013-HFB24
   Zmin, Zmax: 8 110

theo_table: 2013-HFB25
   Zmin, Zmax: 8 120

theo_table: 2013-HFB26
   Zmin, Zmax: 8 120

theo_table: 2021-BSkG1
   Zmin, Zmax: 8 110

theo_table: 2022-BSkG2
   Zmin, Zmax: 8 118

theo_table: 2023-BSkG3
   Zmin, Zmax: 8 118

theo_table: 2025-BSkG4
   Zmin, Zmax: 8 118

--------------------
stable nuclei:
Oldest discovery is from:  1896
Most recent discovery is from:  2020
dist: [  20.   19.  118.  170.  253.  620.  510.  888.  632.  394.  310.  252.
   72. 1569.    0.    0.    0.    0.    0.    0.]
number of nuclei(Tot): 254
number of nuclei(Sta): 253
number of nuclei(Sel): 253

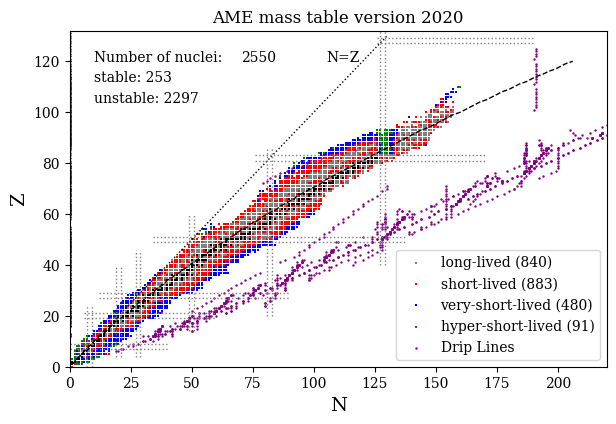

../../_images/59e1fd8923287687f19d78c94c65082f35b23bab225ef92c81e31a7e54c278b1.png
